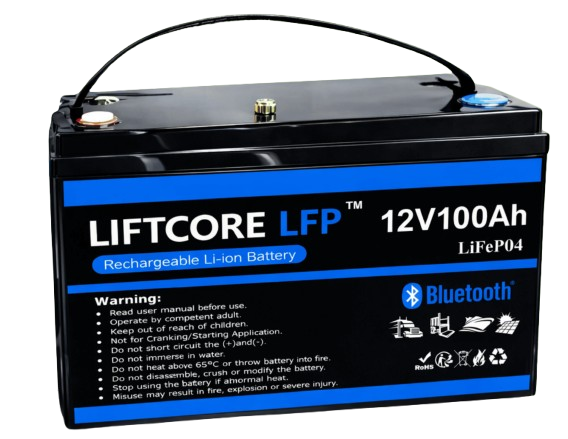

ENGINEERED FOR LIFT GATE PERFORMANCE
LiftCore LFP™ is designed for lift gate power in last-mile delivery and fleet trucks. It delivers high-current performance, fast actuation, long lifecycle, and zero parasitic drain while keeping the truck ready for service throughout the day.
| Cell type | LiFePO4 |
|---|---|
| Rated capacity | 100 A-h |
| Rated energy | 1280 kW-h |
| Rated voltage | 12.8 VDC |
| Charging voltage | 14.1 – 14.6 VDC |
| Recommended charging current input terminal | 20 to 40A (configurable) |
| Maximum charging current input terminal | 100 A |
| MPPT charging I/O terminal | Max 10 A |
| Continuous discharge current I/O terminal | 200 A |
| Maximum discharge current I/O terminal | 300 A |
| Protection voltage of discharge | 10 VDC (configurable) |
| Cell operating temperature (charging) | -5°F to 140°F (-20~60°C, Auto heating below 0°C) |
| Cell operating temperature (discharging) | -5 to 150°F (-20~65°C) |
| Storage temperature range (<1 month) | -5 to 140°F (-20~+60°C) |
| Storage temperature range (<6 months) | 15 to 115°F (-10~+45°C) |
| Operating humidity range | 10%~90% RH |
| Max self discharge | 3% max |
| Dimensions | 13” X 6.8” X 9.5” (330 X 173 X 240 mm) |
| Weight | 38 lbs (17.3kg) |
| IP protection | IP66 |
| Shipping class | UN3480, UN38.3 |
| Battery management system | Safety, memory, communication, control |
| Communications | CAN J1939, Bluetooth |
| Cycle life | >3000 (0.5C charge and discharge) |
| Terminal screws | M8 |
LiftCore™ LFP combines advanced lithium technology, solar energy integration, and intelligent power distribution to keep fleet trucks moving without interruption.
It is built to give last-mile delivery and fleet operations a dependable lift gate power system that performs under repeated heavy cycles and demanding schedules.
